Alternate Dome Installations:

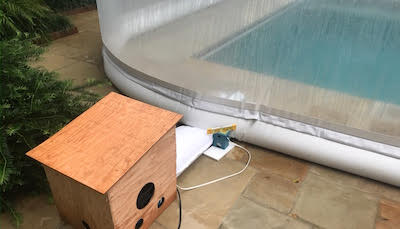

If your pool deck is not a candidate for our cable anchor hold down system we now have other options available for you. We can make your dome with a water-tube ballast system to hold it down.

To keep your new dome from "migrating" off the deck or worse yet into the pool, we need to secure it to prevent excessive lateral movement.

To accomplish this tethering, we manufacture a vinyl sleeve on the outside of the dome directly above the water tube. This sleeve is designed to accept a 4 or 5 foot length of 1" or 1-1/4" diameter PVC pipe which is easily found in the plumbing department of any home improvement center.

Here we show 3 different types of anchoring for a water tube dome.

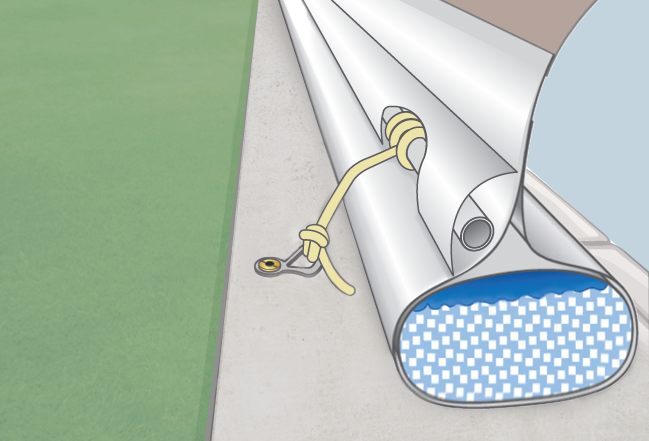

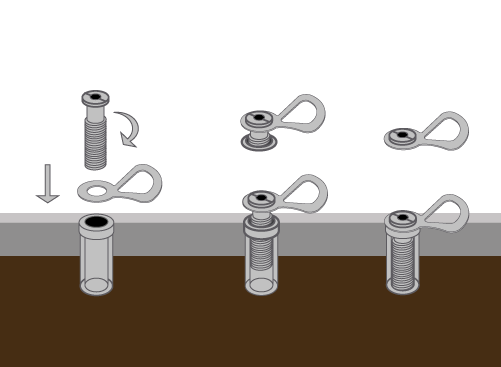

• Method 1. Securing to existing brass pool cover anchors.

*Click to view enlarged image.

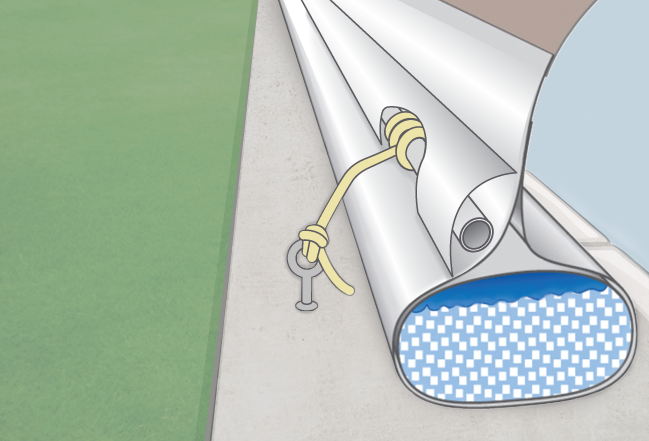

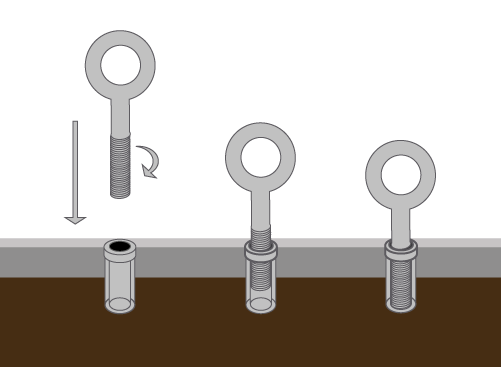

• Method 2. Securing to Eye bolts and concrete anchors.

*Click to view enlarged image.

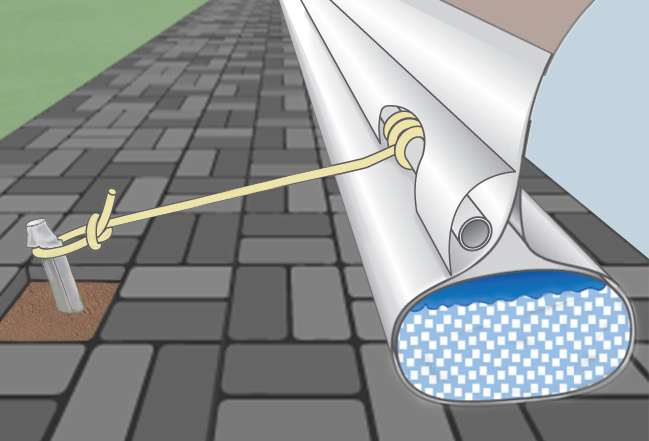

• Method 3. Securing to Stakes.

*Click to View PDF Instructions

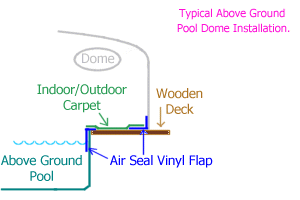

For a wooden deck installation, the deck must completely surround the pool. The dome is mounted to the deck using a threaded eye-bolt system. These anchors are spaced approx. every 3 foot to provide an even "pull" on the dome for strength and also to prevent wrinkles on the walls of the pool dome. An additional piece of vinyl is mounted to the deck at the waters edge and hangs down into the water in order help create a proper air seal. Normally a piece of indoor/outdoor car- pet is provided by the customer to lay on top of the deck to prevent air leakage through the gaps in the wooden deck. When the pool dome is removed for the summer, the eyebolts are also removed leaving the deck free & clear of any obstructions.

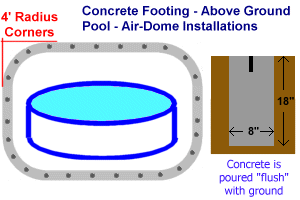

To install a dome on the ground, pouring a concrete foundation is a good method to consider. The concrete "footing" can be poured "flush" with the ground so when the dome and anchor bolts are removed in the "off" season, the area around the pool is left unobstructed. The anchor bolts are positioned every 3' foot or so in this application. Extra area can be provided within the dome to allow for patio furniture and other items. This makes sense when small children are being supervised within the unit as the parent or other responsible individual can remain close at hand in order to monitor the use of the pool. For further specifications see our Dome Footing Diagram.

For areas that have grass, pavers, or dirt and in situations where pouring a full footing is not desired, the use of concrete piers poured directly in the ground is another idea to think about. This method is also used for in ground pool dome installations where the deck of the pool is irregularly shaped and the wall(s) of the dome must "traverse" over a non concrete area. The tubing is 1" EMT Conduit available at your local building supply store. The dome is secured to the EMT conduit at approximate 3' intervals. Special Anchors are required and the poured in place concrete block spacing can be up to 6'. For more information on this type of installation view our Paver Details.

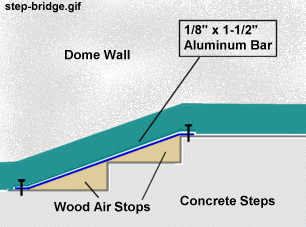

If your pool deck has steps, there are ways to accomplish that. Please give us a call, 1-800-982-6966. We have the experience to make your project work.

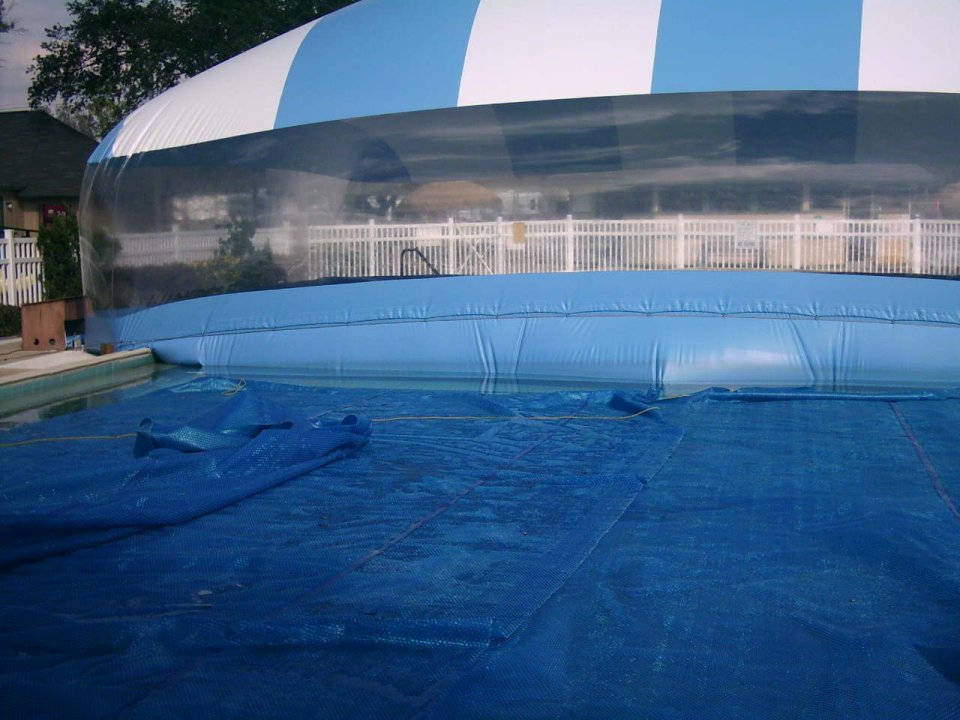

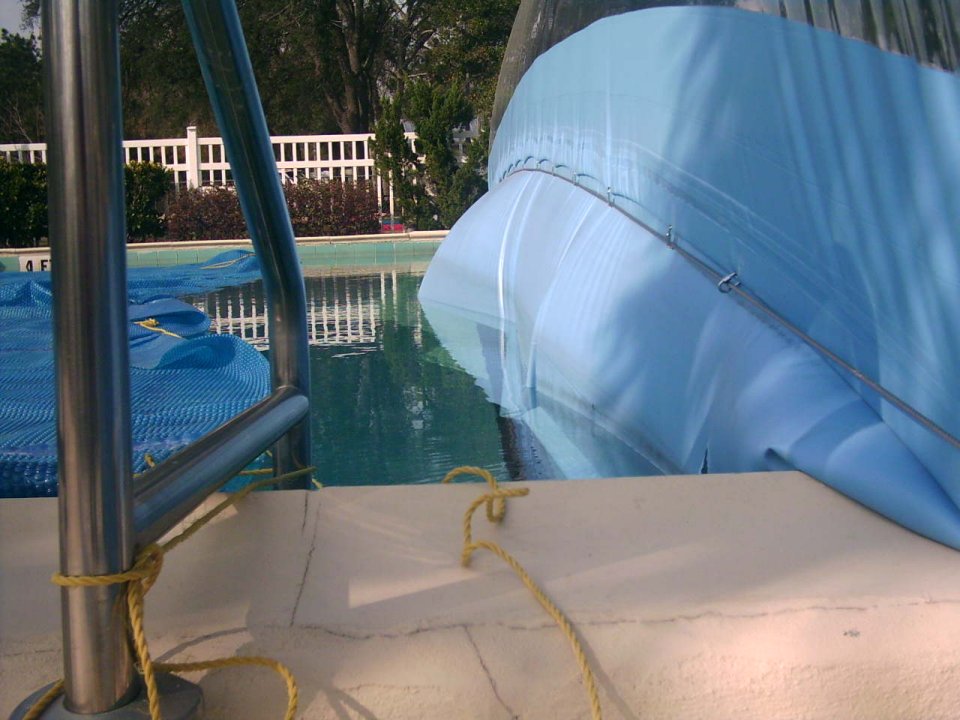

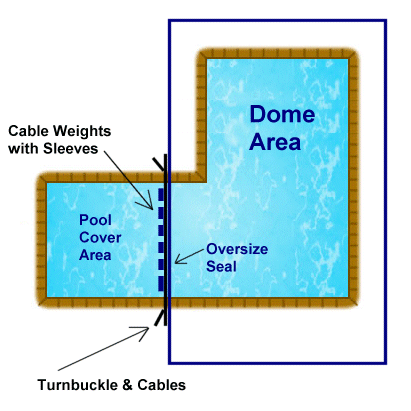

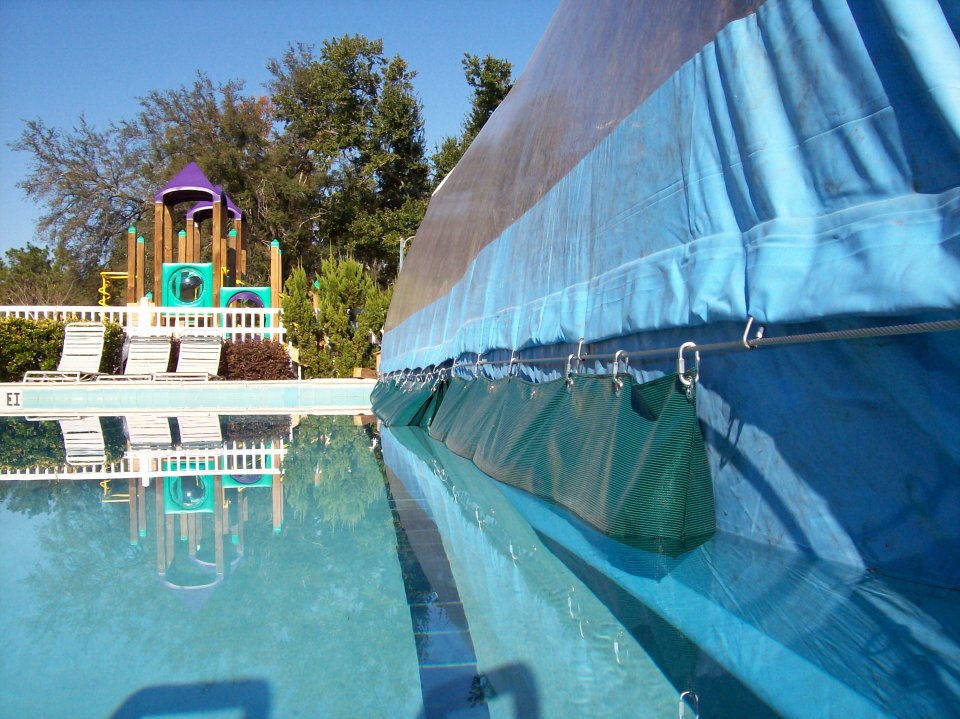

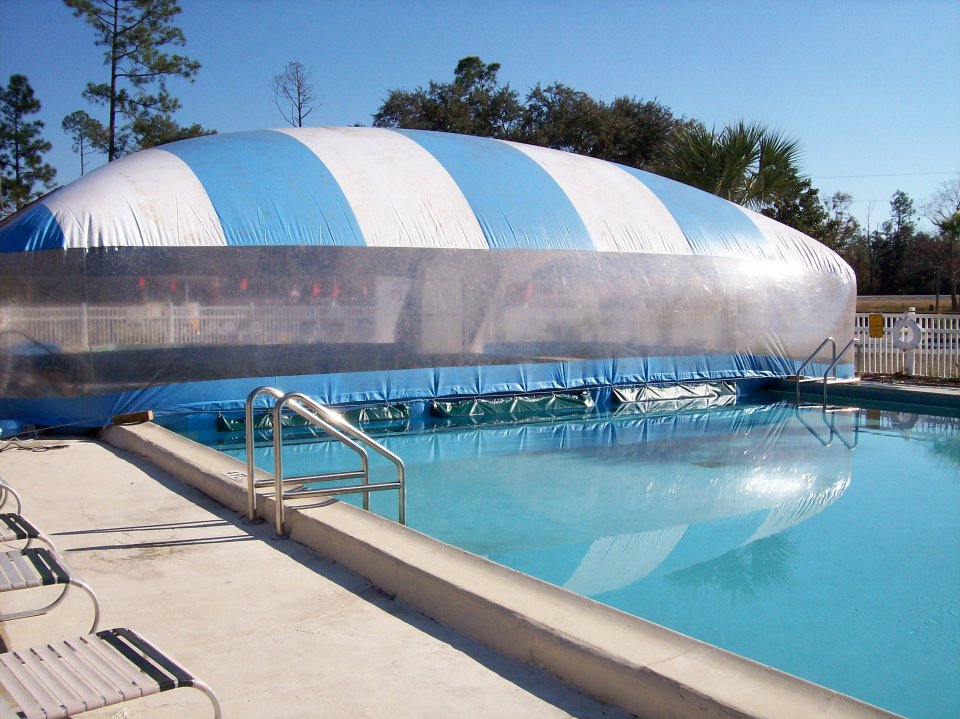

This mounting system allows us to place a dome over pools where spanning the water is necessary. To make this work, we use a cable system, turnbuckles, an oversize air-flap seal, carabiners, adjustable ballast containers, and UV protective holders. As you can see in the photos below, it works very well. A version of the "Cable Bridge" mounting system for Commercial Domes can be found HERE.

Should you have a special need not addressed on this web-site, please give us a call and we'll do our best to design a system that will allow you to enjoy the many benefits our domes offer!
